Marine Radar
medium
108 Modelle gesamt
SOLAS-required radar systems for collision avoidance and navigation. IMO requires X-Band on all vessels ≥300 GT, S-Band additionally on ≥3000 GT.
18 Hersteller · 108 Modelle
🏭
Furuno
33 ✓ 33 verifiziert

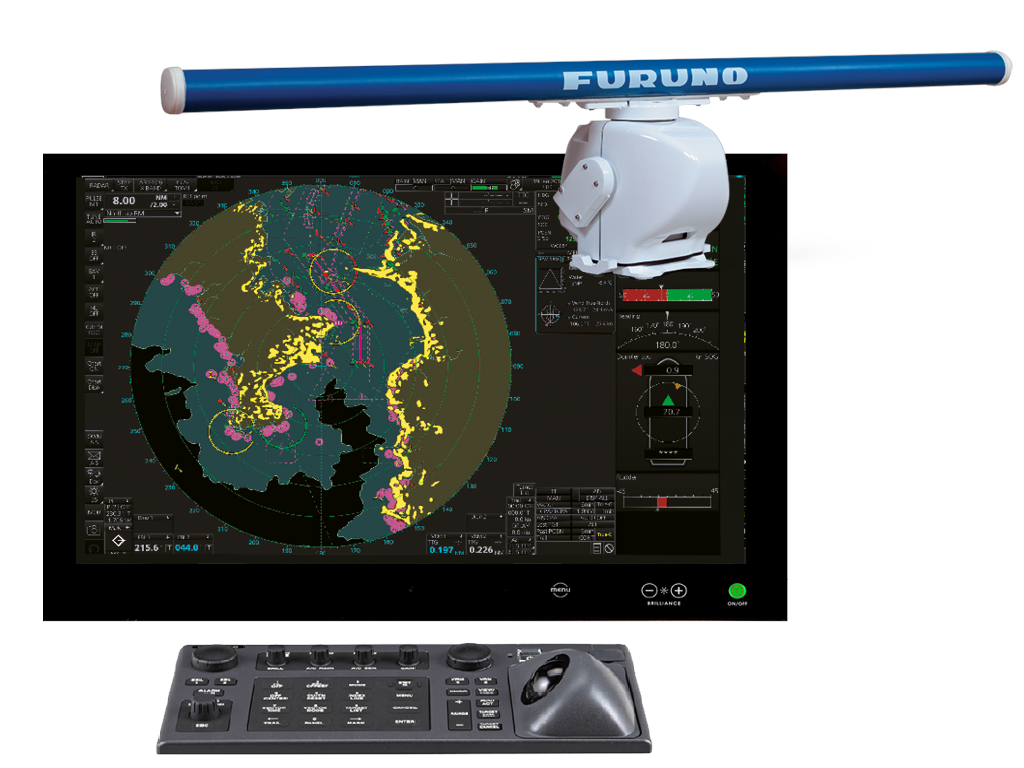

FAR-3210
✓ verifiziert
Inspector
25 kW / 120 NM
· Navigation Data / Sensor
frequency: X-Band 9 GHz
power_output: 25 kW
range_nm: 120
display_size: 19/26 inch
chart_overlay: True
Common Failures:
- • Chart overlay misalignment
- • Network interface card failure
- • Touchscreen calibration drift
Service: Part of Furuno INS. Requires regular chart database updates.
Spares: Furuno: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.

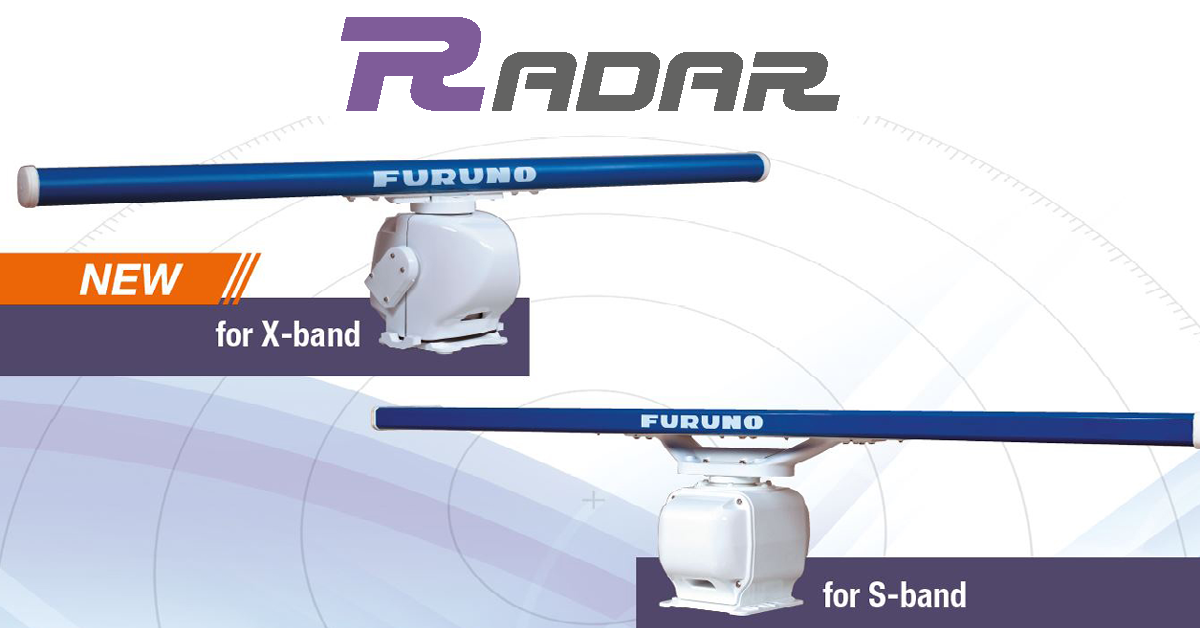

FAR-3220
✓ verifiziert
Inspector
30 kW / 120 NM
· Navigation Data / Sensor
frequency: S-Band 3 GHz
power_output: 30 kW
range_nm: 120
display_size: 19/26 inch
chart_overlay: True
Common Failures:
- • S-Band magnetron expensive replacement
- • Network switch dependency
- • Chart license expiry
Service: Paired with FAR-3210 for dual-band bridge. Chart data via LAN.
Spares: Furuno: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
FAR-3230S
✓ verifiziert
Inspector
30 kW / 120 NM
· Navigation Data / Sensor
frequency: S-Band 3 GHz
power_output: 30 kW
range_nm: 120
Common Failures:
- • Magnetron aging
- • Cooling fan failure
- • Antenna pedestal seal leaks
Service: Heavy-duty S-Band for large vessels. Magnetron interval ~7,000 hrs.
Spares: Furuno: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
⚙️
FAR-2x28 Series
✓ verifiziert
Inspector
12/25 kW
· Navigation Data / Sensor
frequency: X/S-Band
power_output: 12/25 kW
range_nm: 96
Common Failures:
- • Display processor board failure
- • Scanner motor overheating
- • Intermittent heading input loss
Service: Popular on bulk carriers. Spares still available. Heading sensor interface critical.
Spares: Furuno: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
FAR-2x38 Series
✓ verifiziert
Inspector
12/25 kW
· Navigation Data / Sensor
frequency: X/S-Band
power_output: 12/25 kW
range_nm: 120
Common Failures:
- • Software update dependency
- • LAN communication errors
- • Trackball mechanism wear
Service: Successor to 2x28. Network-based architecture.
Spares: Furuno: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
FAR-2117
✓ verifiziert
Inspector
12 kW / 72 NM
· Navigation Data / Sensor
frequency: X-Band 9 GHz
power_output: 12 kW
range_nm: 72
display_size: 19 inch
Common Failures:
- • Magnetron failure
- • Limited ARPA capacity issues
- • Display hinge cracking
Service: Budget option. Suitable for coastal and short-sea trade.
Spares: Furuno: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
FAR-1518
✓ verifiziert
Inspector
12 kW / 64 NM
· Navigation Data / Sensor
frequency: X-Band 9 GHz
power_output: 12 kW
range_nm: 64
display_size: 15 inch
Common Failures:
- • Radome antenna cracking
- • Display blackout
- • GPS interface loss
Service: Compact form factor. Radome or open array options.
Spares: Furuno: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
DRS-NXT Series
✓ verifiziert
Inspector
25 W solid state
· Navigation Data / Sensor
frequency: X-Band 9 GHz
power_output: 25 W (solid state)
range_nm: 36
technology: Solid State Doppler
Common Failures:
- • Firmware update issues
- • Doppler calibration required
- • WiFi module failure
Service: No magnetron = no replacement cost. Ideal for recreational and small commercial.
Spares: Furuno: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
⚙️
FA-1510
✓ verifiziert
Inspector
Class A / 12.5 W
· Navigation Data / Sensor
class: A
power_output: 12.5 W
imo_approved: True
Common Failures:
- • Firmware update procedure complex
- • Touchscreen responsiveness
- • Network configuration errors
Service: Successor to FA-170. Better target handling capacity.
Spares: Furuno: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
DS-60
✓ verifiziert
Inspector
Doppler / 200 kHz
· Navigation Data / Sensor
technology: Doppler
frequency: 200 kHz
imo_approved: True
Common Failures:
- • Transducer window cavitation damage
- • Single-axis accuracy in crosscurrent
- • Cable water ingress
Service: Budget Doppler log. Consider DS-80 for dual-axis requirements.
Spares: Furuno: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
⚙️
FCV-1150
✓ verifiziert
Inspector
50/200 kHz / 2000 m
· Navigation Data / Sensor
frequency: 50/200 kHz
max_depth: 2000 m
display_size: 15 inch
Common Failures:
- • Fish arch interpretation errors
- • Bottom lock loss in rough seas
- • Display color calibration
Service: Primarily for fishing. Also used for bottom classification.
Spares: Furuno: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
⚙️
FE-700
✓ verifiziert
Inspector
50/200 kHz / 2000 m
· Navigation Data / Sensor
frequency: 50/200 kHz
max_depth: 2000 m
imo_approved: True
Common Failures:
- • Transducer cable water ingress
- • Sounding loss in aerated water
- • Printer paper jam (if equipped)
Service: Compact echo sounder with optional thermal printer for sounding record.
Spares: Furuno: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
FM-4800
✓ verifiziert
Inspector
25 W / DSC
· Navigation Data / Sensor
power_output: 25 W
dsc_class: A
gmdss_approved: True
Common Failures:
- • Small display readability
- • DSC encoder issues
- • Mounting bracket vibration
Service: Compact form factor. Good for smaller vessels.
Spares: Furuno: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
FS-1575 MF/HF
✓ verifiziert
Inspector
150 W PEP
· Navigation Data / Sensor
power_output: 150 W PEP
frequency_range: 1.6-27.5 MHz
gmdss_approved: True
Common Failures:
- • Antenna matching unit failure
- • DSC decode errors
- • Remote handset cable break
Service: Compact MF/HF. Good for smaller deep-sea vessels.
Spares: Furuno: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
FS-2575 MF/HF
✓ verifiziert
Inspector
250 W PEP
· Navigation Data / Sensor
power_output: 250 W PEP
frequency_range: 1.6-27.5 MHz
gmdss_approved: True
Common Failures:
- • PA overheating
- • Antenna coupler maintenance
- • NBDP terminal issues
Service: Higher power variant. 250 W for extended range.
Spares: Furuno: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
⚙️
NX-700A
✓ verifiziert
Inspector
518/490 kHz
· Navigation Data / Sensor
frequencies: 518/490 kHz
printer: True
gmdss_approved: True
Common Failures:
- • Printer mechanism jam
- • Thermal paper fading
- • Antenna tuning drift
Service: Standard Navtex with printer. Paper roll replacement and printer head cleaning.
Spares: Furuno: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
⚙️
NX-700B
✓ verifiziert
Inspector
518/490 kHz
· Navigation Data / Sensor
frequencies: 518/490 kHz
printer: False
gmdss_approved: True
Common Failures:
- • Memory overflow if not cleared
- • Display backlight failure
- • Antenna connection issues
Service: Paperless Navtex. Memory management important — clear old messages.
Spares: Furuno: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
⚙️
NAVpilot-700
✓ verifiziert
Inspector
Adaptive fantum
· Navigation Data / Sensor
control_type: Adaptive Fantum
imo_approved: True
Common Failures:
- • Fantum sensor calibration
- • Heading interface loss
- • Rudder servo valve issues
Service: Furuno's advanced autopilot. Fantum = no rudder feedback sensor needed.
Spares: Furuno: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
⚙️
NAVpilot-300
✓ verifiziert
Inspector
PID control
· Navigation Data / Sensor
control_type: PID
Common Failures:
- • Limited vessel parameter settings
- • Compass input issues
- • Helm pump compatibility
Service: Simple compact autopilot. For hydraulic steering systems.
Spares: Furuno: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
VR-7000S
✓ verifiziert
Inspector
S-VDR / 30 days
· Navigation Data / Sensor
· S-VDR
type: S-VDR
recording_duration: 30 days
imo_approved: True
Common Failures:
- • Limited audio channels
- • Simplified data quality
- • Capsule maintenance
Service: S-VDR for retrofit. Reduced installation complexity.
Spares: Furuno: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
BR-500
✓ verifiziert
Inspector
3-stage alarm
· Navigation Data / Sensor
stages: 3
imo_approved: True
detection: IR + pressure
Common Failures:
- • IR sensor window fogging
- • Pressure mat wear
- • Timer circuit failure
Service: Furuno BNWAS. Dual detection: IR + pressure mat options.
Spares: Furuno: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
⚙️
FAR-2827
✓ verifiziert
Inspector
25 kW / 96 NM
· Navigation Data / Sensor
frequency: X-Band 9 GHz
power_output: 25 kW
range_nm: 96
Common Failures:
- • Magnetron aging
- • Chart overlay sync issues
- • Display hinge fatigue
Service: Mid-generation chart radar. Widely installed 2010-2018.
Spares: Furuno: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
⚙️
FAR-2837S
✓ verifiziert
Inspector
30 kW / 120 NM
· Navigation Data / Sensor
frequency: S-Band 3 GHz
power_output: 30 kW
range_nm: 120
Common Failures:
- • S-Band magnetron cost
- • Antenna weight
- • Network bus dependency
Service: Paired with FAR-2827 for dual-band operation.
Spares: Furuno: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
⚙️
FAR-2218
✓ verifiziert
Inspector
12 kW / 72 NM
· Navigation Data / Sensor
frequency: X-Band 9 GHz
power_output: 12 kW
range_nm: 72
Common Failures:
- • Magnetron failure
- • Limited target tracking
- • Display size constraints
Service: Budget X-Band for smaller commercial vessels.
Spares: Furuno: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
FAR-2228
✓ verifiziert
Inspector
12 kW / 96 NM
· Navigation Data / Sensor
frequency: S-Band 3 GHz
power_output: 12 kW
range_nm: 96
Common Failures:
- • S-Band waveguide moisture
- • Scanner gearbox noise
- • Display backlight
Service: Lower-power S-Band. Good for vessels 3000-10000 GT.
Spares: Furuno: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
⚙️
FA-150
✓ verifiziert
Inspector
Class A / 12.5 W
· Navigation Data / Sensor
class: A
power_output: 12.5 W
imo_approved: True
Common Failures:
- • Aging hardware
- • GPS receiver drift
- • Display limitations
Service: Predecessor to FA-170. Functional but aging.
Spares: Furuno: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
⚙️
DS-86
✓ verifiziert
Inspector
Doppler / deep water
· Navigation Data / Sensor
technology: Doppler
bottom_track_depth: 600 m
imo_approved: True
Common Failures:
- • Deep water mode accuracy
- • Transducer biofouling
- • Complex calibration
Service: Enhanced Doppler for deep water operations.
Spares: Furuno: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
⚙️
FE-900
✓ verifiziert
Inspector
50/200 kHz / 3000 m
· Navigation Data / Sensor
frequency: 50/200 kHz
max_depth: 3000 m
imo_approved: True
Common Failures:
- • New model — limited field data
- • Display calibration
- • Transducer compatibility
Service: Latest Furuno echo sounder. Successor to FE-800.
Spares: Furuno: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
⚙️
Felcom 250/500
✓ verifiziert
Inspector
284/432 kbps
· Navigation Data / Sensor
service: Inmarsat FleetBroadband
data_rate: 284/432 kbps
Common Failures:
- • Radome heater failure in cold
- • Antenna tracking algorithms
- • Voice codec issues
Service: Furuno FleetBroadband. 250 for small, 500 for large vessels.
Spares: Furuno: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
⚙️
FI-5002 Weather Station
✓ verifiziert
Inspector
Integrated display
· Navigation Data / Sensor
· Integrated weather display
type: Integrated weather display
Common Failures:
- • Sensor cable water ingress
- • Display backlight
- • Barometer calibration drift
Service: Furuno weather system. Integrates with Furuno bridge.
Spares: Furuno: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
FS-NBDP Terminal
✓ verifiziert
Inspector
NBDP/Telex
· Navigation Data / Sensor
technology: NBDP
gmdss_approved: True
Common Failures:
- • Integration dependency
- • Terminal software aging
- • Keyboard issues
Service: Furuno NBDP. Integrated or standalone operation.
Spares: Furuno: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
⚙️
FI-70 Conning Display
✓ verifiziert
Inspector
15 inch color display
· Navigation Data / Sensor
· Conning display
display_size: 15 inch
type: Conning display
Common Failures:
- • Sensor input failures
- • Display configuration complexity
- • Network dependency
Service: Furuno conning display. Part of Furuno INS.
Spares: Furuno: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
SART-8 Radar SART
✓ verifiziert
Inspector
N/A
· Navigation Data / Sensor
· radar_sart
type: radar_sart
frequency_ghz: 9
gmdss: True
origin: Japan
Common Failures:
- • Battery end-of-life
- • Antenna breakage
- • Housing water ingress
Service: Japanese manufacturer. Common on Furuno-equipped vessels.
Spares: Furuno: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
🏭
Furuno Electric
25 ✓ 25 verifiziert
BR-500
✓ verifiziert
PREMIUM
Per IMO/SOLAS navigation requirements
· Navigation Data / Sensor
imo_approved: True
source: dnv-approval-finder
model_number: MEDB000011T
Common Failures:
- • Anzeige-/Display-Ausfall durch Elektronik-Alterung
- • Sensor-Interface Kommunikationsfehler
- • Software-/Firmware-Bugs erfordern Updates
- • Antennenkabel-Korrosion durch Deckbelastung
- • Spannungsversorgungsprobleme bei Bordnetz-Schwankungen
Service: Jährliche Inspektion per SOLAS/Flag State. Software-Updates per Hersteller-Advisory. Sensor-Kalibrierung quartalsweise. Backup-System Test monatlich.
Spares: Furuno Electric Co., Ltd.: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
⚙️
FA-170
✓ verifiziert
PREMIUM
Per IMO/SOLAS navigation requirements
· Navigation Data / Sensor
imo_approved: True
source: dnv-approval-finder
model_number: MEDB00000EV
Common Failures:
- • Anzeige-/Display-Ausfall durch Elektronik-Alterung
- • Sensor-Interface Kommunikationsfehler
- • Software-/Firmware-Bugs erfordern Updates
- • Antennenkabel-Korrosion durch Deckbelastung
- • Spannungsversorgungsprobleme bei Bordnetz-Schwankungen
Service: Jährliche Inspektion per SOLAS/Flag State. Software-Updates per Hersteller-Advisory. Sensor-Kalibrierung quartalsweise. Backup-System Test monatlich.
Spares: Furuno Electric Co., Ltd.: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
FELCOM20
✓ verifiziert
PREMIUM
Per IMO/SOLAS navigation requirements
· Navigation Data / Sensor
imo_approved: True
source: dnv-approval-finder
model_number: MEDB00008BV
Common Failures:
- • Anzeige-/Display-Ausfall durch Elektronik-Alterung
- • Sensor-Interface Kommunikationsfehler
- • Software-/Firmware-Bugs erfordern Updates
- • Antennenkabel-Korrosion durch Deckbelastung
- • Spannungsversorgungsprobleme bei Bordnetz-Schwankungen
Service: Jährliche Inspektion per SOLAS/Flag State. Software-Updates per Hersteller-Advisory. Sensor-Kalibrierung quartalsweise. Backup-System Test monatlich.
Spares: Furuno Electric Co., Ltd.: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
DS-85 Doppler Speed Log
✓ verifiziert
PREMIUM
Per IMO/SOLAS navigation requirements
· Navigation Data / Sensor
imo_approved: True
source: dnv-approval-finder
model_number: MEDB000052F
Common Failures:
- • Anzeige-/Display-Ausfall durch Elektronik-Alterung
- • Sensor-Interface Kommunikationsfehler
- • Software-/Firmware-Bugs erfordern Updates
- • Antennenkabel-Korrosion durch Deckbelastung
- • Spannungsversorgungsprobleme bei Bordnetz-Schwankungen
Service: Jährliche Inspektion per SOLAS/Flag State. Software-Updates per Hersteller-Advisory. Sensor-Kalibrierung quartalsweise. Backup-System Test monatlich.
Spares: Furuno Electric Co., Ltd.: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
⚙️
Furuno Voyager INS
✓ verifiziert
PREMIUM
Per IMO/SOLAS navigation requirements
· Navigation Data / Sensor
imo_approved: True
source: dnv-approval-finder
model_number: MEDB00001G6
Common Failures:
- • Anzeige-/Display-Ausfall durch Elektronik-Alterung
- • Sensor-Interface Kommunikationsfehler
- • Software-/Firmware-Bugs erfordern Updates
- • Antennenkabel-Korrosion durch Deckbelastung
- • Spannungsversorgungsprobleme bei Bordnetz-Schwankungen
Service: Jährliche Inspektion per SOLAS/Flag State. Software-Updates per Hersteller-Advisory. Sensor-Kalibrierung quartalsweise. Backup-System Test monatlich.
Spares: Furuno Electric Co., Ltd.: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
DS-60
✓ verifiziert
PREMIUM
Per IMO/SOLAS navigation requirements
· Navigation Data / Sensor
imo_approved: True
source: dnv-approval-finder
model_number: MEDB000008R
Common Failures:
- • Anzeige-/Display-Ausfall durch Elektronik-Alterung
- • Sensor-Interface Kommunikationsfehler
- • Software-/Firmware-Bugs erfordern Updates
- • Antennenkabel-Korrosion durch Deckbelastung
- • Spannungsversorgungsprobleme bei Bordnetz-Schwankungen
Service: Jährliche Inspektion per SOLAS/Flag State. Software-Updates per Hersteller-Advisory. Sensor-Kalibrierung quartalsweise. Backup-System Test monatlich.
Spares: Furuno Electric Co., Ltd.: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
⚙️
FMD-3200/3200-BB/FMD-3300
✓ verifiziert
PREMIUM
Per IMO/SOLAS navigation requirements
· Navigation Data / Sensor
imo_approved: True
source: dnv-approval-finder
model_number: MEDB00001AV
Common Failures:
- • Anzeige-/Display-Ausfall durch Elektronik-Alterung
- • Sensor-Interface Kommunikationsfehler
- • Software-/Firmware-Bugs erfordern Updates
- • Antennenkabel-Korrosion durch Deckbelastung
- • Spannungsversorgungsprobleme bei Bordnetz-Schwankungen
Service: Jährliche Inspektion per SOLAS/Flag State. Software-Updates per Hersteller-Advisory. Sensor-Kalibrierung quartalsweise. Backup-System Test monatlich.
Spares: Furuno Electric Co., Ltd.: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
⚙️
FMD-3100
✓ verifiziert
PREMIUM
Per IMO/SOLAS navigation requirements
· Navigation Data / Sensor
imo_approved: True
source: dnv-approval-finder
model_number: MEDB00001MN
Common Failures:
- • Anzeige-/Display-Ausfall durch Elektronik-Alterung
- • Sensor-Interface Kommunikationsfehler
- • Software-/Firmware-Bugs erfordern Updates
- • Antennenkabel-Korrosion durch Deckbelastung
- • Spannungsversorgungsprobleme bei Bordnetz-Schwankungen
Service: Jährliche Inspektion per SOLAS/Flag State. Software-Updates per Hersteller-Advisory. Sensor-Kalibrierung quartalsweise. Backup-System Test monatlich.
Spares: Furuno Electric Co., Ltd.: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
⚙️
NX-900
✓ verifiziert
PREMIUM
Per IMO/SOLAS navigation requirements
· Navigation Data / Sensor
imo_approved: True
source: dnv-approval-finder
model_number: MEDB000087C
Common Failures:
- • Anzeige-/Display-Ausfall durch Elektronik-Alterung
- • Sensor-Interface Kommunikationsfehler
- • Software-/Firmware-Bugs erfordern Updates
- • Antennenkabel-Korrosion durch Deckbelastung
- • Spannungsversorgungsprobleme bei Bordnetz-Schwankungen
Service: Jährliche Inspektion per SOLAS/Flag State. Software-Updates per Hersteller-Advisory. Sensor-Kalibrierung quartalsweise. Backup-System Test monatlich.
Spares: Furuno Electric Co., Ltd.: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
FAR-3015, FAR-3025, FAR-3035S, FAR-3035S-NXT, FAR-3025-NXT, FAR-3025-NXT-MARK-2
✓ verifiziert
PREMIUM
Per IMO/SOLAS navigation requirements
· Navigation Data / Sensor
imo_approved: True
source: dnv-approval-finder
model_number: MEDB00008HF
Common Failures:
- • Anzeige-/Display-Ausfall durch Elektronik-Alterung
- • Sensor-Interface Kommunikationsfehler
- • Software-/Firmware-Bugs erfordern Updates
- • Antennenkabel-Korrosion durch Deckbelastung
- • Spannungsversorgungsprobleme bei Bordnetz-Schwankungen
Service: Jährliche Inspektion per SOLAS/Flag State. Software-Updates per Hersteller-Advisory. Sensor-Kalibrierung quartalsweise. Backup-System Test monatlich.
Spares: Furuno Electric Co., Ltd.: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
⚙️
FMD-3005
✓ verifiziert
PREMIUM
Per IMO/SOLAS navigation requirements
· Navigation Data / Sensor
imo_approved: True
source: dnv-approval-finder
model_number: MEDB00008HE
Common Failures:
- • Anzeige-/Display-Ausfall durch Elektronik-Alterung
- • Sensor-Interface Kommunikationsfehler
- • Software-/Firmware-Bugs erfordern Updates
- • Antennenkabel-Korrosion durch Deckbelastung
- • Spannungsversorgungsprobleme bei Bordnetz-Schwankungen
Service: Jährliche Inspektion per SOLAS/Flag State. Software-Updates per Hersteller-Advisory. Sensor-Kalibrierung quartalsweise. Backup-System Test monatlich.
Spares: Furuno Electric Co., Ltd.: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
NAVpilot-1000
✓ verifiziert
PREMIUM
Per IMO/SOLAS navigation requirements
· Navigation Data / Sensor
imo_approved: True
source: dnv-approval-finder
model_number: MEDB0000BZ1
Common Failures:
- • Anzeige-/Display-Ausfall durch Elektronik-Alterung
- • Sensor-Interface Kommunikationsfehler
- • Software-/Firmware-Bugs erfordern Updates
- • Antennenkabel-Korrosion durch Deckbelastung
- • Spannungsversorgungsprobleme bei Bordnetz-Schwankungen
Service: Jährliche Inspektion per SOLAS/Flag State. Software-Updates per Hersteller-Advisory. Sensor-Kalibrierung quartalsweise. Backup-System Test monatlich.
Spares: Furuno Electric Co., Ltd.: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
⚙️
FAR-2218, FAR-2218-BB, FAR-2228, FAR-2228-BB, FAR-2228-NXT, FAR-2228-NXT-BB, FAR-2238S, FAR-2238S-BB, FAR-2238S-NXT, FAR-2238S-NXT-BB, FAR-2318, FAR-2328, FAR-2328W, FAR-2328-NXT, FAR-2338SW, FAR-2338S, FAR-2338S-NXT, FAR-2018-MARK-2, FAR-2028-MARK-2, FAR-2028-NXT-MARK-2
✓ verifiziert
PREMIUM
Per IMO/SOLAS navigation requirements
· Navigation Data / Sensor
imo_approved: True
source: dnv-approval-finder
model_number: MEDB00002AU
Common Failures:
- • Anzeige-/Display-Ausfall durch Elektronik-Alterung
- • Sensor-Interface Kommunikationsfehler
- • Software-/Firmware-Bugs erfordern Updates
- • Antennenkabel-Korrosion durch Deckbelastung
- • Spannungsversorgungsprobleme bei Bordnetz-Schwankungen
Service: Jährliche Inspektion per SOLAS/Flag State. Software-Updates per Hersteller-Advisory. Sensor-Kalibrierung quartalsweise. Backup-System Test monatlich.
Spares: Furuno Electric Co., Ltd.: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
⚙️
FAR-3210, FAR-3210-BB, FAR-3220, FAR-3220-BB, FAR-3310, FAR-3320, FAR-3320W, FAR-3220W-BB, FAR-3330SW, FAR-3230SW-BB, FAR-3230S, FAR-3230S-BB, FAR-3330S, FAR-3230S-SSD, FAR-3230S-SSD-BB, FAR-3330S-SSD, FAR-3220-NXT, FAR-3220-NXT-BB, FAR-3320-NXT
✓ verifiziert
PREMIUM
Per IMO/SOLAS navigation requirements
· Navigation Data / Sensor
imo_approved: True
source: dnv-approval-finder
model_number: MEDB00001BE
Common Failures:
- • Anzeige-/Display-Ausfall durch Elektronik-Alterung
- • Sensor-Interface Kommunikationsfehler
- • Software-/Firmware-Bugs erfordern Updates
- • Antennenkabel-Korrosion durch Deckbelastung
- • Spannungsversorgungsprobleme bei Bordnetz-Schwankungen
Service: Jährliche Inspektion per SOLAS/Flag State. Software-Updates per Hersteller-Advisory. Sensor-Kalibrierung quartalsweise. Backup-System Test monatlich.
Spares: Furuno Electric Co., Ltd.: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
FAR-1518(-BB)/FAR-1528(-BB) HSC
✓ verifiziert
PREMIUM
Per IMO/SOLAS navigation requirements
· Navigation Data / Sensor
imo_approved: True
source: dnv-approval-finder
model_number: MEDB00000FD
Common Failures:
- • Anzeige-/Display-Ausfall durch Elektronik-Alterung
- • Sensor-Interface Kommunikationsfehler
- • Software-/Firmware-Bugs erfordern Updates
- • Antennenkabel-Korrosion durch Deckbelastung
- • Spannungsversorgungsprobleme bei Bordnetz-Schwankungen
Service: Jährliche Inspektion per SOLAS/Flag State. Software-Updates per Hersteller-Advisory. Sensor-Kalibrierung quartalsweise. Backup-System Test monatlich.
Spares: Furuno Electric Co., Ltd.: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
FAR-1518(-BB)/ FAR-1528(-BB)
✓ verifiziert
PREMIUM
Per IMO/SOLAS navigation requirements
· Navigation Data / Sensor
imo_approved: True
source: dnv-approval-finder
model_number: MEDB00000FC
Common Failures:
- • Anzeige-/Display-Ausfall durch Elektronik-Alterung
- • Sensor-Interface Kommunikationsfehler
- • Software-/Firmware-Bugs erfordern Updates
- • Antennenkabel-Korrosion durch Deckbelastung
- • Spannungsversorgungsprobleme bei Bordnetz-Schwankungen
Service: Jährliche Inspektion per SOLAS/Flag State. Software-Updates per Hersteller-Advisory. Sensor-Kalibrierung quartalsweise. Backup-System Test monatlich.
Spares: Furuno Electric Co., Ltd.: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
FE-800
✓ verifiziert
PREMIUM
Per IMO/SOLAS navigation requirements
· Navigation Data / Sensor
imo_approved: True
source: dnv-approval-finder
model_number: MEDB000039F
Common Failures:
- • Anzeige-/Display-Ausfall durch Elektronik-Alterung
- • Sensor-Interface Kommunikationsfehler
- • Software-/Firmware-Bugs erfordern Updates
- • Antennenkabel-Korrosion durch Deckbelastung
- • Spannungsversorgungsprobleme bei Bordnetz-Schwankungen
Service: Jährliche Inspektion per SOLAS/Flag State. Software-Updates per Hersteller-Advisory. Sensor-Kalibrierung quartalsweise. Backup-System Test monatlich.
Spares: Furuno Electric Co., Ltd.: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
FS-1575
✓ verifiziert
PREMIUM
Per IMO/SOLAS navigation requirements
· Navigation Data / Sensor
source: dnv-approval-finder
model_number: MERB0000898
Common Failures:
- • Anzeige-/Display-Ausfall durch Elektronik-Alterung
- • Sensor-Interface Kommunikationsfehler
- • Software-/Firmware-Bugs erfordern Updates
- • Antennenkabel-Korrosion durch Deckbelastung
- • Spannungsversorgungsprobleme bei Bordnetz-Schwankungen
Service: Jährliche Inspektion per SOLAS/Flag State. Software-Updates per Hersteller-Advisory. Sensor-Kalibrierung quartalsweise. Backup-System Test monatlich.
Spares: Furuno Electric Co., Ltd.: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
⚙️
FS-2575
✓ verifiziert
PREMIUM
Per IMO/SOLAS navigation requirements
· Navigation Data / Sensor
source: dnv-approval-finder
model_number: MERB000089A
Common Failures:
- • Anzeige-/Display-Ausfall durch Elektronik-Alterung
- • Sensor-Interface Kommunikationsfehler
- • Software-/Firmware-Bugs erfordern Updates
- • Antennenkabel-Korrosion durch Deckbelastung
- • Spannungsversorgungsprobleme bei Bordnetz-Schwankungen
Service: Jährliche Inspektion per SOLAS/Flag State. Software-Updates per Hersteller-Advisory. Sensor-Kalibrierung quartalsweise. Backup-System Test monatlich.
Spares: Furuno Electric Co., Ltd.: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
FS-5075
✓ verifiziert
PREMIUM
Per IMO/SOLAS navigation requirements
· Navigation Data / Sensor
source: dnv-approval-finder
model_number: MERB000089D
Common Failures:
- • Anzeige-/Display-Ausfall durch Elektronik-Alterung
- • Sensor-Interface Kommunikationsfehler
- • Software-/Firmware-Bugs erfordern Updates
- • Antennenkabel-Korrosion durch Deckbelastung
- • Spannungsversorgungsprobleme bei Bordnetz-Schwankungen
Service: Jährliche Inspektion per SOLAS/Flag State. Software-Updates per Hersteller-Advisory. Sensor-Kalibrierung quartalsweise. Backup-System Test monatlich.
Spares: Furuno Electric Co., Ltd.: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
⚙️
NX-700A, NX-700B
✓ verifiziert
PREMIUM
Per IMO/SOLAS navigation requirements
· Navigation Data / Sensor
source: dnv-approval-finder
model_number: MERB000089E
Common Failures:
- • Anzeige-/Display-Ausfall durch Elektronik-Alterung
- • Sensor-Interface Kommunikationsfehler
- • Software-/Firmware-Bugs erfordern Updates
- • Antennenkabel-Korrosion durch Deckbelastung
- • Spannungsversorgungsprobleme bei Bordnetz-Schwankungen
Service: Jährliche Inspektion per SOLAS/Flag State. Software-Updates per Hersteller-Advisory. Sensor-Kalibrierung quartalsweise. Backup-System Test monatlich.
Spares: Furuno Electric Co., Ltd.: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
FELCOM18
✓ verifiziert
PREMIUM
Per IMO/SOLAS navigation requirements
· Navigation Data / Sensor
source: dnv-approval-finder
model_number: MERB0000895
Common Failures:
- • Anzeige-/Display-Ausfall durch Elektronik-Alterung
- • Sensor-Interface Kommunikationsfehler
- • Software-/Firmware-Bugs erfordern Updates
- • Antennenkabel-Korrosion durch Deckbelastung
- • Spannungsversorgungsprobleme bei Bordnetz-Schwankungen
Service: Jährliche Inspektion per SOLAS/Flag State. Software-Updates per Hersteller-Advisory. Sensor-Kalibrierung quartalsweise. Backup-System Test monatlich.
Spares: Furuno Electric Co., Ltd.: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
⚙️
FM-8900S
✓ verifiziert
PREMIUM
Per IMO/SOLAS navigation requirements
· Navigation Data / Sensor
source: dnv-approval-finder
model_number: MERB0000897
Common Failures:
- • Anzeige-/Display-Ausfall durch Elektronik-Alterung
- • Sensor-Interface Kommunikationsfehler
- • Software-/Firmware-Bugs erfordern Updates
- • Antennenkabel-Korrosion durch Deckbelastung
- • Spannungsversorgungsprobleme bei Bordnetz-Schwankungen
Service: Jährliche Inspektion per SOLAS/Flag State. Software-Updates per Hersteller-Advisory. Sensor-Kalibrierung quartalsweise. Backup-System Test monatlich.
Spares: Furuno Electric Co., Ltd.: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
⚙️
FAR-2218, FAR-2218-BB, FAR-2228, FAR-2228-BB, FAR-2228-NXT, FAR-2228-NXT-BB, FAR-2238S, FAR-2238S-BB, FAR-2238S-NXT, FAR-2238S-NXT-BB, FAR-2318, FAR-2328, FAR-2328W, FAR-2328-NXT, FAR-2338SW, FAR-2338S, FAR-2338S-NXT, FAR-2018-MARK-2, FAR-2028-MARK-2
✓ verifiziert
PREMIUM
Per IMO/SOLAS navigation requirements
· Navigation Data / Sensor
source: uk-mca
model_number: MERB00002AU-6
Common Failures:
- • Anzeige-/Display-Ausfall durch Elektronik-Alterung
- • Sensor-Interface Kommunikationsfehler
- • Software-/Firmware-Bugs erfordern Updates
- • Antennenkabel-Korrosion durch Deckbelastung
- • Spannungsversorgungsprobleme bei Bordnetz-Schwankungen
Service: Jährliche Inspektion per SOLAS/Flag State. Software-Updates per Hersteller-Advisory. Sensor-Kalibrierung quartalsweise. Backup-System Test monatlich.
Spares: Furuno Electric Co., Ltd.: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
FAR-3015, FAR-3025, FAR-3035S, FAR-3035S-NXT, FAR-3025-NXT
✓ verifiziert
PREMIUM
Per IMO/SOLAS navigation requirements
· Navigation Data / Sensor
source: uk-mca
model_number: MERB00008HF-4
Common Failures:
- • Anzeige-/Display-Ausfall durch Elektronik-Alterung
- • Sensor-Interface Kommunikationsfehler
- • Software-/Firmware-Bugs erfordern Updates
- • Antennenkabel-Korrosion durch Deckbelastung
- • Spannungsversorgungsprobleme bei Bordnetz-Schwankungen
Service: Jährliche Inspektion per SOLAS/Flag State. Software-Updates per Hersteller-Advisory. Sensor-Kalibrierung quartalsweise. Backup-System Test monatlich.
Spares: Furuno Electric Co., Ltd.: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
🏭
Sika Services
21 ✓ 21 verifiziert⚙️
Sika Firesil® Marine N
✓ verifiziert
PREMIUM
Per IMO/SOLAS navigation requirements
· Navigation Data / Sensor
source: dnv-approval-finder
Common Failures:
- • Anzeige-/Display-Ausfall durch Elektronik-Alterung
- • Sensor-Interface Kommunikationsfehler
- • Software-/Firmware-Bugs erfordern Updates
- • Antennenkabel-Korrosion durch Deckbelastung
- • Spannungsversorgungsprobleme bei Bordnetz-Schwankungen
Service: Jährliche Inspektion per SOLAS/Flag State. Software-Updates per Hersteller-Advisory. Sensor-Kalibrierung quartalsweise. Backup-System Test monatlich.
Spares: Sika Services AG: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
⚙️
Sika® Firestop Marine
✓ verifiziert
PREMIUM
Per IMO/SOLAS navigation requirements
· Navigation Data / Sensor
source: dnv-approval-finder
Common Failures:
- • Anzeige-/Display-Ausfall durch Elektronik-Alterung
- • Sensor-Interface Kommunikationsfehler
- • Software-/Firmware-Bugs erfordern Updates
- • Antennenkabel-Korrosion durch Deckbelastung
- • Spannungsversorgungsprobleme bei Bordnetz-Schwankungen
Service: Jährliche Inspektion per SOLAS/Flag State. Software-Updates per Hersteller-Advisory. Sensor-Kalibrierung quartalsweise. Backup-System Test monatlich.
Spares: Sika Services AG: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
⚙️
SikaFloor® Marine 100
✓ verifiziert
PREMIUM
Per IMO/SOLAS navigation requirements
· Navigation Data / Sensor
source: dnv-approval-finder
Common Failures:
- • Anzeige-/Display-Ausfall durch Elektronik-Alterung
- • Sensor-Interface Kommunikationsfehler
- • Software-/Firmware-Bugs erfordern Updates
- • Antennenkabel-Korrosion durch Deckbelastung
- • Spannungsversorgungsprobleme bei Bordnetz-Schwankungen
Service: Jährliche Inspektion per SOLAS/Flag State. Software-Updates per Hersteller-Advisory. Sensor-Kalibrierung quartalsweise. Backup-System Test monatlich.
Spares: Sika Services AG: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
⚙️
SikaFloor® Marine 107
✓ verifiziert
PREMIUM
Per IMO/SOLAS navigation requirements
· Navigation Data / Sensor
source: dnv-approval-finder
Common Failures:
- • Anzeige-/Display-Ausfall durch Elektronik-Alterung
- • Sensor-Interface Kommunikationsfehler
- • Software-/Firmware-Bugs erfordern Updates
- • Antennenkabel-Korrosion durch Deckbelastung
- • Spannungsversorgungsprobleme bei Bordnetz-Schwankungen
Service: Jährliche Inspektion per SOLAS/Flag State. Software-Updates per Hersteller-Advisory. Sensor-Kalibrierung quartalsweise. Backup-System Test monatlich.
Spares: Sika Services AG: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
⚙️
SikaFloor® Marine 118 FC
✓ verifiziert
PREMIUM
Per IMO/SOLAS navigation requirements
· Navigation Data / Sensor
source: dnv-approval-finder
Common Failures:
- • Anzeige-/Display-Ausfall durch Elektronik-Alterung
- • Sensor-Interface Kommunikationsfehler
- • Software-/Firmware-Bugs erfordern Updates
- • Antennenkabel-Korrosion durch Deckbelastung
- • Spannungsversorgungsprobleme bei Bordnetz-Schwankungen
Service: Jährliche Inspektion per SOLAS/Flag State. Software-Updates per Hersteller-Advisory. Sensor-Kalibrierung quartalsweise. Backup-System Test monatlich.
Spares: Sika Services AG: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
⚙️
SikaFloor® Marine 120
✓ verifiziert
PREMIUM
Per IMO/SOLAS navigation requirements
· Navigation Data / Sensor
source: dnv-approval-finder
Common Failures:
- • Anzeige-/Display-Ausfall durch Elektronik-Alterung
- • Sensor-Interface Kommunikationsfehler
- • Software-/Firmware-Bugs erfordern Updates
- • Antennenkabel-Korrosion durch Deckbelastung
- • Spannungsversorgungsprobleme bei Bordnetz-Schwankungen
Service: Jährliche Inspektion per SOLAS/Flag State. Software-Updates per Hersteller-Advisory. Sensor-Kalibrierung quartalsweise. Backup-System Test monatlich.
Spares: Sika Services AG: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
⚙️
Sikafloor® Marine 130
✓ verifiziert
PREMIUM
Per IMO/SOLAS navigation requirements
· Navigation Data / Sensor
source: dnv-approval-finder
Common Failures:
- • Anzeige-/Display-Ausfall durch Elektronik-Alterung
- • Sensor-Interface Kommunikationsfehler
- • Software-/Firmware-Bugs erfordern Updates
- • Antennenkabel-Korrosion durch Deckbelastung
- • Spannungsversorgungsprobleme bei Bordnetz-Schwankungen
Service: Jährliche Inspektion per SOLAS/Flag State. Software-Updates per Hersteller-Advisory. Sensor-Kalibrierung quartalsweise. Backup-System Test monatlich.
Spares: Sika Services AG: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
SikaFloor® Marine 18
✓ verifiziert
PREMIUM
Per IMO/SOLAS navigation requirements
· Navigation Data / Sensor
source: dnv-approval-finder
Common Failures:
- • Anzeige-/Display-Ausfall durch Elektronik-Alterung
- • Sensor-Interface Kommunikationsfehler
- • Software-/Firmware-Bugs erfordern Updates
- • Antennenkabel-Korrosion durch Deckbelastung
- • Spannungsversorgungsprobleme bei Bordnetz-Schwankungen
Service: Jährliche Inspektion per SOLAS/Flag State. Software-Updates per Hersteller-Advisory. Sensor-Kalibrierung quartalsweise. Backup-System Test monatlich.
Spares: Sika Services AG: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
⚙️
Sikafloor® Marine 190
✓ verifiziert
PREMIUM
Per IMO/SOLAS navigation requirements
· Navigation Data / Sensor
source: dnv-approval-finder
Common Failures:
- • Anzeige-/Display-Ausfall durch Elektronik-Alterung
- • Sensor-Interface Kommunikationsfehler
- • Software-/Firmware-Bugs erfordern Updates
- • Antennenkabel-Korrosion durch Deckbelastung
- • Spannungsversorgungsprobleme bei Bordnetz-Schwankungen
Service: Jährliche Inspektion per SOLAS/Flag State. Software-Updates per Hersteller-Advisory. Sensor-Kalibrierung quartalsweise. Backup-System Test monatlich.
Spares: Sika Services AG: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
⚙️
SikaFloor® Marine KG-202 N
✓ verifiziert
PREMIUM
Per IMO/SOLAS navigation requirements
· Navigation Data / Sensor
source: dnv-approval-finder
Common Failures:
- • Anzeige-/Display-Ausfall durch Elektronik-Alterung
- • Sensor-Interface Kommunikationsfehler
- • Software-/Firmware-Bugs erfordern Updates
- • Antennenkabel-Korrosion durch Deckbelastung
- • Spannungsversorgungsprobleme bei Bordnetz-Schwankungen
Service: Jährliche Inspektion per SOLAS/Flag State. Software-Updates per Hersteller-Advisory. Sensor-Kalibrierung quartalsweise. Backup-System Test monatlich.
Spares: Sika Services AG: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
SIKAFLOOR MARINE KG-404 N
✓ verifiziert
PREMIUM
Per IMO/SOLAS navigation requirements
· Navigation Data / Sensor
source: dnv-approval-finder
Common Failures:
- • Anzeige-/Display-Ausfall durch Elektronik-Alterung
- • Sensor-Interface Kommunikationsfehler
- • Software-/Firmware-Bugs erfordern Updates
- • Antennenkabel-Korrosion durch Deckbelastung
- • Spannungsversorgungsprobleme bei Bordnetz-Schwankungen
Service: Jährliche Inspektion per SOLAS/Flag State. Software-Updates per Hersteller-Advisory. Sensor-Kalibrierung quartalsweise. Backup-System Test monatlich.
Spares: Sika Services AG: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
⚙️
SikaFloor® Marine Litosilo N
✓ verifiziert
PREMIUM
Per IMO/SOLAS navigation requirements
· Navigation Data / Sensor
source: uk-mca
Common Failures:
- • Anzeige-/Display-Ausfall durch Elektronik-Alterung
- • Sensor-Interface Kommunikationsfehler
- • Software-/Firmware-Bugs erfordern Updates
- • Antennenkabel-Korrosion durch Deckbelastung
- • Spannungsversorgungsprobleme bei Bordnetz-Schwankungen
Service: Jährliche Inspektion per SOLAS/Flag State. Software-Updates per Hersteller-Advisory. Sensor-Kalibrierung quartalsweise. Backup-System Test monatlich.
Spares: Sika Services AG: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
⚙️
Sikafloor® Marine Litosilo Steel
✓ verifiziert
PREMIUM
Per IMO/SOLAS navigation requirements
· Navigation Data / Sensor
source: dnv-approval-finder
Common Failures:
- • Anzeige-/Display-Ausfall durch Elektronik-Alterung
- • Sensor-Interface Kommunikationsfehler
- • Software-/Firmware-Bugs erfordern Updates
- • Antennenkabel-Korrosion durch Deckbelastung
- • Spannungsversorgungsprobleme bei Bordnetz-Schwankungen
Service: Jährliche Inspektion per SOLAS/Flag State. Software-Updates per Hersteller-Advisory. Sensor-Kalibrierung quartalsweise. Backup-System Test monatlich.
Spares: Sika Services AG: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
⚙️
Sikafloor Marine Litosilo X
✓ verifiziert
PREMIUM
Per IMO/SOLAS navigation requirements
· Navigation Data / Sensor
source: dnv-approval-finder
Common Failures:
- • Anzeige-/Display-Ausfall durch Elektronik-Alterung
- • Sensor-Interface Kommunikationsfehler
- • Software-/Firmware-Bugs erfordern Updates
- • Antennenkabel-Korrosion durch Deckbelastung
- • Spannungsversorgungsprobleme bei Bordnetz-Schwankungen
Service: Jährliche Inspektion per SOLAS/Flag State. Software-Updates per Hersteller-Advisory. Sensor-Kalibrierung quartalsweise. Backup-System Test monatlich.
Spares: Sika Services AG: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
⚙️
Sikafloor® Marine Litosilo X / Litosilo N
✓ verifiziert
PREMIUM
Per IMO/SOLAS navigation requirements
· Navigation Data / Sensor
source: uk-mca
Common Failures:
- • Anzeige-/Display-Ausfall durch Elektronik-Alterung
- • Sensor-Interface Kommunikationsfehler
- • Software-/Firmware-Bugs erfordern Updates
- • Antennenkabel-Korrosion durch Deckbelastung
- • Spannungsversorgungsprobleme bei Bordnetz-Schwankungen
Service: Jährliche Inspektion per SOLAS/Flag State. Software-Updates per Hersteller-Advisory. Sensor-Kalibrierung quartalsweise. Backup-System Test monatlich.
Spares: Sika Services AG: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
⚙️
Sikafloor Marine PK-90 Steel
✓ verifiziert
PREMIUM
Per IMO/SOLAS navigation requirements
· Navigation Data / Sensor
source: dnv-approval-finder
Common Failures:
- • Anzeige-/Display-Ausfall durch Elektronik-Alterung
- • Sensor-Interface Kommunikationsfehler
- • Software-/Firmware-Bugs erfordern Updates
- • Antennenkabel-Korrosion durch Deckbelastung
- • Spannungsversorgungsprobleme bei Bordnetz-Schwankungen
Service: Jährliche Inspektion per SOLAS/Flag State. Software-Updates per Hersteller-Advisory. Sensor-Kalibrierung quartalsweise. Backup-System Test monatlich.
Spares: Sika Services AG: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
⚙️
Sikafloor® Marine Thermolight N (35 mm)
✓ verifiziert
PREMIUM
Per IMO/SOLAS navigation requirements
· Navigation Data / Sensor
source: dnv-approval-finder
Common Failures:
- • Anzeige-/Display-Ausfall durch Elektronik-Alterung
- • Sensor-Interface Kommunikationsfehler
- • Software-/Firmware-Bugs erfordern Updates
- • Antennenkabel-Korrosion durch Deckbelastung
- • Spannungsversorgungsprobleme bei Bordnetz-Schwankungen
Service: Jährliche Inspektion per SOLAS/Flag State. Software-Updates per Hersteller-Advisory. Sensor-Kalibrierung quartalsweise. Backup-System Test monatlich.
Spares: Sika Services AG: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
⚙️
SikaFloor® Marine VEM
✓ verifiziert
PREMIUM
Per IMO/SOLAS navigation requirements
· Navigation Data / Sensor
source: dnv-approval-finder
Common Failures:
- • Anzeige-/Display-Ausfall durch Elektronik-Alterung
- • Sensor-Interface Kommunikationsfehler
- • Software-/Firmware-Bugs erfordern Updates
- • Antennenkabel-Korrosion durch Deckbelastung
- • Spannungsversorgungsprobleme bei Bordnetz-Schwankungen
Service: Jährliche Inspektion per SOLAS/Flag State. Software-Updates per Hersteller-Advisory. Sensor-Kalibrierung quartalsweise. Backup-System Test monatlich.
Spares: Sika Services AG: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
⚙️
SikaFloor® Marine VEM 118 FC
✓ verifiziert
PREMIUM
Per IMO/SOLAS navigation requirements
· Navigation Data / Sensor
source: dnv-approval-finder
Common Failures:
- • Anzeige-/Display-Ausfall durch Elektronik-Alterung
- • Sensor-Interface Kommunikationsfehler
- • Software-/Firmware-Bugs erfordern Updates
- • Antennenkabel-Korrosion durch Deckbelastung
- • Spannungsversorgungsprobleme bei Bordnetz-Schwankungen
Service: Jährliche Inspektion per SOLAS/Flag State. Software-Updates per Hersteller-Advisory. Sensor-Kalibrierung quartalsweise. Backup-System Test monatlich.
Spares: Sika Services AG: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
⚙️
SikaFloor® Marine VEM 18
✓ verifiziert
PREMIUM
Per IMO/SOLAS navigation requirements
· Navigation Data / Sensor
source: dnv-approval-finder
Common Failures:
- • Anzeige-/Display-Ausfall durch Elektronik-Alterung
- • Sensor-Interface Kommunikationsfehler
- • Software-/Firmware-Bugs erfordern Updates
- • Antennenkabel-Korrosion durch Deckbelastung
- • Spannungsversorgungsprobleme bei Bordnetz-Schwankungen
Service: Jährliche Inspektion per SOLAS/Flag State. Software-Updates per Hersteller-Advisory. Sensor-Kalibrierung quartalsweise. Backup-System Test monatlich.
Spares: Sika Services AG: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
⚙️
Sikafloor Marine VES-515
✓ verifiziert
PREMIUM
Per IMO/SOLAS navigation requirements
· Navigation Data / Sensor
source: dnv-approval-finder
Common Failures:
- • Anzeige-/Display-Ausfall durch Elektronik-Alterung
- • Sensor-Interface Kommunikationsfehler
- • Software-/Firmware-Bugs erfordern Updates
- • Antennenkabel-Korrosion durch Deckbelastung
- • Spannungsversorgungsprobleme bei Bordnetz-Schwankungen
Service: Jährliche Inspektion per SOLAS/Flag State. Software-Updates per Hersteller-Advisory. Sensor-Kalibrierung quartalsweise. Backup-System Test monatlich.
Spares: Sika Services AG: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
🏭
JRC
10 ✓ 10 verifiziert⚙️
JMA-9172-SA
✓ verifiziert
Inspector
25 kW / 120 NM
· Navigation Data / Sensor
frequency: X-Band 9 GHz
power_output: 25 kW
range_nm: 120
display_size: 26 inch
arpa_targets: 100
Common Failures:
- • Magnetron degradation after 8000-10000 hrs
- • Scanner motor bearing wear
- • Display backlight failure
Service: Magnetron replacement interval ~10,000 hrs. Waveguide gaskets check annually.
Spares: JRC: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
⚙️
JMA-9132-SA
✓ verifiziert
Inspector
12 kW / 96 NM
· Navigation Data / Sensor
· X-Band Radar
frequency: X-Band 9 GHz
power_output: 12 kW
range_nm: 96
display_size: 19/26 inch
Common Failures:
- • Magnetron aging
- • IF board faults
- • Antenna pedestal corrosion
Service: Standard magnetron life ~8,000 hrs. Annual bearing lubrication required.
Spares: JRC: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
Pros
- High range of 96 nautical miles for enhanced navigation
- Dual display size options for flexibility in bridge setup
- Reliable X-Band frequency for accurate target detection
Cons
- Magnetron aging can lead to reduced performance over time
- IF board faults can cause system downtime
- Antenna pedestal corrosion requires regular maintenance
Typical Vessels:
TankerContainerBulk CarrierPassenger Ship
Certifications:
IMODNV
Decision Guide: Choose if you require a high-range marine radar with flexible display options for your vessel. Avoid if you are looking for a system with lower maintenance requirements or are concerned about magnetron aging.
Use Cases: Typically deployed on the bridges of commercial vessels, such as tankers, container ships, and bulk carriers, for safe navigation and collision avoidance in various sea conditions.
⚙️
JMA-9122-6XA
✓ verifiziert
Inspector
6 kW / 72 NM
· Navigation Data / Sensor
frequency: X-Band 9 GHz
power_output: 6 kW
range_nm: 72
display_size: 19 inch
Common Failures:
- • Scanner slip ring wear
- • Power supply fan failure
- • Display connector oxidation
Service: Suitable for smaller vessels. Slip ring maintenance every 2 years.
Spares: JRC: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
JMA-9110-6XA
✓ verifiziert
Inspector
6 kW / 72 NM
· Navigation Data / Sensor
frequency: X-Band 9 GHz
power_output: 6 kW
range_nm: 72
display_size: 19 inch
Common Failures:
- • Magnetron wear
- • Power supply capacitor aging
- • Keypad membrane deterioration
Service: Economy class — fewer ARPA targets. Good for coastal trade.
Spares: JRC: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
⚙️
JMA-9100 Series
✓ verifiziert
Inspector
10/25 kW
· Navigation Data / Sensor
frequency: X-Band 9 GHz
power_output: 10/25 kW
range_nm: 96
Common Failures:
- • CRT display burnout (older units)
- • Obsolete spare parts
- • Waveguide joint leaks
Service: Many upgraded to JMA-9100 TFT displays. Spare parts becoming scarce.
Spares: JRC: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
⚙️
JMA-7132
✓ verifiziert
Inspector
30 kW / 120 NM
· Navigation Data / Sensor
frequency: S-Band 3 GHz
power_output: 30 kW
range_nm: 120
display_size: 26 inch
Common Failures:
- • Magnetron replacement costly
- • S-Band waveguide moisture ingress
- • Bearing seizure in harsh weather
Service: S-Band less affected by sea clutter. Magnetron runs 6,000-8,000 hrs.
Spares: JRC: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
⚙️
JMA-7122
✓ verifiziert
Inspector
12 kW / 96 NM
· Navigation Data / Sensor
frequency: S-Band 3 GHz
power_output: 12 kW
range_nm: 96
Common Failures:
- • Magnetron degradation
- • Scanner gearbox noise
- • Display color calibration drift
Service: Lower-powered S-Band option. Annual waveguide inspection recommended.
Spares: JRC: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
⚙️
JMA-610
✓ verifiziert
Inspector
4 kW / 24 NM
· Navigation Data / Sensor
frequency: X-Band 9 GHz
power_output: 4 kW
range_nm: 24
display_size: 10.4 inch
Common Failures:
- • Antenna motor failure in dusty environments
- • Display glare issues
- • Power connector corrosion
Service: Optimized for river/canal use. Not SOLAS-certified.
Spares: JRC: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
⚙️
JMA-9172-XA
✓ verifiziert
Inspector
12 kW / 96 NM
· Navigation Data / Sensor
frequency: X-Band 9 GHz
power_output: 12 kW
range_nm: 96
Common Failures:
- • Magnetron wear
- • Display processor overheating
- • Scanner slip ring
Service: 12 kW variant for vessels not needing 25 kW range.
Spares: JRC: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
JMA-5300 Series
✓ verifiziert
Inspector
4/6 kW / 48 NM
· Navigation Data / Sensor
frequency: X-Band 9 GHz
power_output: 4/6 kW
range_nm: 48
Common Failures:
- • Radome cracking
- • Display screen dimming
- • Power connector issues
Service: Non-SOLAS compact radar. Popular on Japanese fishing fleet.
Spares: JRC: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
🏭
Kongsberg
3 ✓ 2 verifiziert
Broadband Radar
✓ verifiziert
Inspector
Solid state / 50 W
· Navigation Data / Sensor
frequency: X-Band
power_output: 50 W (solid state)
technology: Broadband
Common Failures:
- • Limited range vs magnetron
- • Software complexity
- • Calibration procedure
Service: Used on offshore vessels for close-range DP operations.
Spares: Kongsberg: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
Broadband Radar
✓ verifiziert
Inspector
X-Band, Solid-State
· Electromagnetic Radar
Voltage: 24V DC
type: Broadband Solid-State Radar
size_range: ['BR24', 'Halo20', 'Halo24']
power_range_kw: [0.005, 0.025]
variant_count_approx: 3
period_start_year: 2008
period_end_year: None
drive_type: Electric
construction: Solid-state FMCW, pulse compression, dome antenna
Common Failures:
- • Antenna dome cracking from UV/impact
- • Solid-state module failure
- • Interface cable corrosion
- • Network protocol errors with third-party systems
Service: No magnetron. Dome antenna inspection annually. Firmware updates per manufacturer. Annual survey.
Spares: Kongsberg Maritime / Simrad. Lead time: 1-3 weeks.
⚙️
Kongsberg Voyage Data Recorder
source: Kongsberg Maritime
model_number: Stand Alone Voyage Data Recorder
🏭
Furuno Finland
2 ✓ 2 verifiziert
GATE-1 v2.00
✓ verifiziert
PREMIUM
Per IMO/SOLAS navigation requirements
· Navigation Data / Sensor
source: dnv-approval-finder
model_number: TAA00001WB
Common Failures:
- • Anzeige-/Display-Ausfall durch Elektronik-Alterung
- • Sensor-Interface Kommunikationsfehler
- • Software-/Firmware-Bugs erfordern Updates
- • Antennenkabel-Korrosion durch Deckbelastung
- • Spannungsversorgungsprobleme bei Bordnetz-Schwankungen
Service: Jährliche Inspektion per SOLAS/Flag State. Software-Updates per Hersteller-Advisory. Sensor-Kalibrierung quartalsweise. Backup-System Test monatlich.
Spares: Furuno Finland Oy: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
GATE-1 PAYS
✓ verifiziert
PREMIUM
Per IMO/SOLAS navigation requirements
· Navigation Data / Sensor
source: dnv-approval-finder
model_number: TAA00001GD
Common Failures:
- • Anzeige-/Display-Ausfall durch Elektronik-Alterung
- • Sensor-Interface Kommunikationsfehler
- • Software-/Firmware-Bugs erfordern Updates
- • Antennenkabel-Korrosion durch Deckbelastung
- • Spannungsversorgungsprobleme bei Bordnetz-Schwankungen
Service: Jährliche Inspektion per SOLAS/Flag State. Software-Updates per Hersteller-Advisory. Sensor-Kalibrierung quartalsweise. Backup-System Test monatlich.
Spares: Furuno Finland Oy: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
🏭
Kelvin Hughes
2 ✓ 2 verifiziert⚙️
SharpEye SxV
✓ verifiziert
Inspector
200 W solid state
· Navigation Data / Sensor
frequency: X/S-Band
power_output: 200 W (solid state)
range_nm: 96
technology: Solid State Doppler
Common Failures:
- • Software complexity
- • Doppler processing calibration
- • Cooling system maintenance
Service: Military-grade solid-state technology adapted for merchant marine. Best clutter rejection.
Spares: Kelvin Hughes: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
⚙️
MantaDigital
✓ verifiziert
Inspector
10/25 kW
· Navigation Data / Sensor
frequency: X/S-Band
power_output: 10/25 kW
range_nm: 96
Common Failures:
- • Display controller failure
- • Network interface issues
- • Scanner gearbox wear
Service: Part of Kelvin Hughes integrated bridge offering.
Spares: Kelvin Hughes: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
🏭
Raytheon Anschütz
2 ✓ 2 verifiziert⚙️
NSC 34 Radar
✓ verifiziert
Inspector
12/25 kW
· Navigation Data / Sensor
· X/S-Band Radar
frequency: X/S-Band
power_output: 12/25 kW
range_nm: 120
imo_approved: True
Common Failures:
- • Integration bus errors
- • Magnetron aging
- • Display resolution issues
Service: Designed for Synapsis integration. Standalone operation possible.
Spares: Raytheon Anschütz: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
Pros
- High-resolution display for improved target detection
- Advanced signal processing for reduced clutter and interference
- Compatibility with Synapsis integration for enhanced navigation capabilities
- Standalone operation possible for flexibility
- IMO-approved for compliance with international regulations
Cons
- Integration bus errors may occur, requiring technical support
- Magnetron aging can affect system performance over time
- Display resolution issues may arise, impacting target detection
Typical Vessels:
ContainerTankerBulk CarrierPassenger Ship
Certifications:
IMO
Decision Guide: Choose if you require a high-performance radar system with advanced integration capabilities and compliance with international regulations. Avoid if you are looking for a low-cost, basic radar system or have limited technical support resources.
Use Cases: This equipment is typically deployed on commercial vessels, such as container ships, tankers, and bulk carriers, where advanced navigation and radar capabilities are essential for safe and efficient operation.
⚙️
Synapsis NX Radar
✓ verifiziert
Inspector
12/25 kW
· Navigation Data / Sensor
frequency: X/S-Band
power_output: 12/25 kW
range_nm: 120
Common Failures:
- • System bus communication errors
- • Firmware incompatibility after updates
- • Redundancy switchover lag
Service: Fully integrated with Synapsis NX conning, ECDIS, and autopilot.
Spares: Raytheon Anschütz: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
🏭
Consilium
1 ✓ 1 verifiziert⚙️
Selesmar Radar
✓ verifiziert
Inspector
12/25 kW
· Navigation Data / Sensor
frequency: X-Band
power_output: 12/25 kW
Common Failures:
- • Brand transition confusion
- • Spare parts under new ownership
- • Service availability
Service: Consilium acquired Selesmar. Ongoing support via Consilium.
Spares: Consilium: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
🏭
Furuno Electric (Japan)
1 ✓ 1 verifiziert
FAR-2xx8 Series
✓ verifiziert
PREMIUM
X-Band / S-Band, 25-250 kW
· Electromagnetic Radar
Voltage: 24V DC / 100-230V AC
type: Marine Radar (X-Band / S-Band, ARPA)
size_range: ['FAR-2218', 'FAR-2228', 'FAR-2238S', 'FAR-2238S-BB']
power_range_kw: [0.025, 0.25]
variant_count_approx: 4
period_start_year: 2015
period_end_year: None
drive_type: Electric
construction: Slotted waveguide antenna, solid-state or magnetron transmitter
Common Failures:
- • Magnetron end-of-life after 5,000-8,000 hrs (magnetron models)
- • Antenna rotation motor bearing failure after 30,000+ hrs
- • Display backlight failure
- • Heading marker alignment drift
- • Waveguide moisture ingress from failed pressurization
Service: Magnetron replacement every 5,000-8,000 hrs. Antenna bearing lubrication annually. Performance monitor test weekly (IMO requirement). Annual survey by authorized service engineer.
Spares: Furuno global network — largest marine electronics service network. Lead time: 1-3 weeks. Keep onboard: spare magnetron (magnetron models).
🏭
GEM Elettronica
1 ✓ 1 verifiziert⚙️
GEMINI X-Band
✓ verifiziert
Inspector
25 kW
· Navigation Data / Sensor
frequency: X-Band 9 GHz
power_output: 25 kW
Common Failures:
- • Limited commercial service network
- • Italian-language defaults
- • Antenna pedestal issues
Service: Italian manufacturer. Naval heritage adapted for commercial.
Spares: GEM Elettronica: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
🏭
JRC / Japan Radio Co. (Japan)
1 ✓ 1 verifiziert⚙️
JMA-5300 Series
✓ verifiziert
Inspector
X-Band / S-Band, 25-250 kW
· Electromagnetic Radar
Voltage: 24V DC / 100-230V AC
type: Marine Radar (X-Band / S-Band, ARPA)
size_range: ['JMA-5310', 'JMA-5320', 'JMA-5332', 'JMA-5336']
power_range_kw: [0.025, 0.25]
variant_count_approx: 4
period_start_year: 2015
period_end_year: None
drive_type: Electric
construction: Slotted waveguide antenna, solid-state or magnetron
Common Failures:
- • Magnetron end-of-life
- • Antenna motor bearing wear
- • Display processor failures
- • Heading sensor interface issues
Service: Magnetron replacement per running hours. Antenna bearing annually. Performance monitor weekly. Annual survey.
Spares: JRC global network. Lead time: 1-3 weeks. Good availability in Asia.
🏭
Kelvin Hughes / Hensoldt (UK/Germany)
1 ✓ 1 verifiziert⚙️
SharpEye Radar
✓ verifiziert
Inspector
X-Band / S-Band, Solid-State
· Electromagnetic Radar
Voltage: 24V DC / 100-230V AC
type: Solid-State Doppler Radar
size_range: ['SharpEye X-Band', 'SharpEye S-Band']
power_range_kw: [0.01, 0.05]
variant_count_approx: 2
period_start_year: 2007
period_end_year: None
drive_type: Electric
construction: Solid-state Doppler, pulse compression
Common Failures:
- • Solid-state transmitter module failure
- • Antenna slip-ring wear
- • Display integration issues
Service: No magnetron. Antenna maintenance annually. Annual survey.
Spares: Hensoldt UK (ehem. Kelvin Hughes). Lead time: 2-4 weeks.
🏭
SAM Electronics
1 ✓ 1 verifiziert
RADARPILOT 1100
✓ verifiziert
Inspector
10/25 kW
· Navigation Data / Sensor
frequency: X/S-Band
power_output: 10/25 kW
range_nm: 96
Common Failures:
- • Obsolete hardware
- • Wärtsilä transition support
- • Spare parts scarcity
Service: Legacy SAM radar. Wärtsilä provides continued support.
Spares: SAM Electronics: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
🏭
Sperry Marine
1 ✓ 1 verifiziert⚙️
BridgeMaster E
✓ verifiziert
Inspector
10/25 kW
· Navigation Data / Sensor
frequency: X/S-Band
power_output: 10/25 kW
range_nm: 96
Common Failures:
- • Aging CRT/LCD displays
- • Obsolete processor cards
- • Scanner bearing wear
Service: Being phased out for VisionMaster. Spares increasingly difficult.
Spares: Sperry Marine: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
🏭
Sperry Marine / Northrop Grumman (USA)
1 ✓ 1 verifiziert⚙️
VisionMaster FT Radar
✓ verifiziert
Inspector
X-Band / S-Band
· Electromagnetic Radar
Voltage: 100-230V AC
type: Marine Radar (Magnetron/Solid-State, ARPA)
size_range: ['VisionMaster FT 250', 'VisionMaster FT 330']
power_range_kw: [0.025, 0.25]
variant_count_approx: 2
period_start_year: 2005
period_end_year: None
drive_type: Electric
construction: Magnetron or solid-state, ARPA, chart radar
Common Failures:
- • Magnetron end-of-life
- • Display computer failures
- • Heading interface issues
- • Antenna motor bearing wear
Service: Standard marine radar maintenance. Magnetron per running hours.
Spares: Sperry Marine (Charlottesville, VA, USA / Hamburg). Lead time: 2-4 weeks.
🏭
Terma
1 ✓ 1 verifiziert⚙️
SCANTER 6000
✓ verifiziert
Inspector
Solid state
· Navigation Data / Sensor
frequency: X/S-Band
power_output: Solid State
range_nm: 120
technology: Solid State
Common Failures:
- • High initial cost
- • Proprietary software updates
- • Calibration complexity
Service: Premium radar for VTS, coast guard, and high-end merchant marine.
Spares: Terma: Ersatzteile per Hersteller-Netzwerk. Lead time: 1-4 Wochen. Backup-Systeme an Bord pflichtgemäß.
🏭
Wärtsilä
1 ✓ 1 verifiziert⚙️
NSC Radar / Synapsis
✓ verifiziert
Inspector
X-Band / S-Band, Solid-State
· Electromagnetic Radar
Voltage: 24V DC / 100-230V AC
type: Marine Radar (Solid-State, ARPA, IMO-konform)
size_range: ['NSC-34', 'NSC-40', 'Synapsis Radar']
power_range_kw: [0.025, 0.1]
variant_count_approx: 3
period_start_year: 2010
period_end_year: None
drive_type: Electric
construction: Solid-state transmitter, no magnetron
Common Failures:
- • Solid-state transmitter module failure
- • Antenna drive motor wear
- • Display processor issues
- • Network communication errors
Service: No magnetron replacement needed (solid-state). Antenna bearing annually. Performance monitor weekly. Annual survey.
Spares: Raytheon Anschütz (Kiel, Germany, now Wärtsilä Voyage). Lead time: 2-4 weeks.
