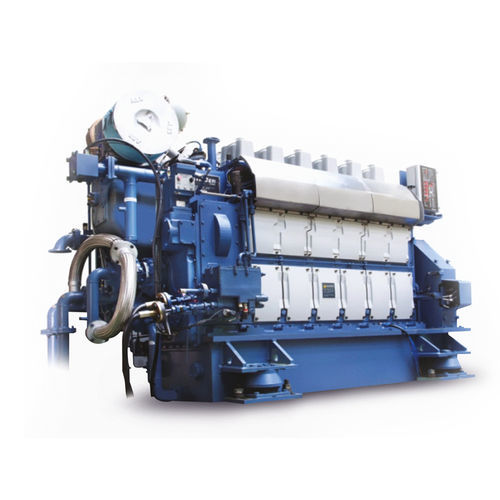

HiMSEN
6L H17/28
Hyundai HiMSEN — Marinediesel, Bohrung 170 x Hub 280 mm, 900-1000 rpm, 575-1080 kW (5-8 cylinders at ~115 kW/cylinder nominal). Brennstoff: Diesel (MDO/MGO), Heavy Fuel Oil (HFO) up to 700 cSt @ 50°C (Uni-Fuel concept). Status: Production (Specialized genset engine series). Verifiziert, Datenblatt verlinkt.
1200.0 kW
Power
Engine Specifications
6
Cylinders
170 mm
Bore
280 mm
Stroke
1,200 kW
MCR Power
900.0 rpm
MCR RPM
4-stroke
Stroke Type
Family: HiMSEN (HD Hyundai) H17/28
· Tier: IMO Tier II
· Brennstoff: MDO, MGO
⚙️ Weitere Zylinder-Konfigurationen 33
5L H17/28
5 cyl
· 1,000 kW
5L H21/32
5 cyl
· 1,700 kW
5L H25/33
5 cyl
· 2,300 kW
5L H25/33P
5 cyl
· 2,400 kW
6L H21/32
6 cyl
· 2,040 kW
6L H25/33
6 cyl
· 2,760 kW
6L H25/33P
6 cyl
· 2,880 kW
6L H32/40
6 cyl
· 3,480 kW
6L H35/40
6 cyl
· 4,260 kW
6L H35/40DF
6 cyl
· 4,140 kW
7L H17/28
7 cyl
· 1,400 kW
7L H21/32
7 cyl
· 2,380 kW
7L H25/33
7 cyl
· 3,220 kW
7L H25/33P
7 cyl
· 3,360 kW
7L H32/40
7 cyl
· 4,060 kW
8L H17/28
8 cyl
· 1,600 kW
8L H21/32
8 cyl
· 2,720 kW
8L H25/33
8 cyl
· 3,680 kW
8L H25/33P
8 cyl
· 3,840 kW
8L H32/40
8 cyl
· 4,640 kW
8L H35/40
8 cyl
· 5,680 kW
8L H35/40DF
8 cyl
· 5,520 kW
9L H17/28
9 cyl
· 1,800 kW
9L H21/32
9 cyl
· 3,060 kW
9L H25/33
9 cyl
· 4,140 kW
9L H25/33P
9 cyl
· 4,320 kW
9L H32/40
9 cyl
· 5,220 kW
9L H35/40
9 cyl
· 6,390 kW
9L H35/40DF
9 cyl
· 6,210 kW
12V H32/40
12 cyl
· 6,960 kW
12V H32/40V
12 cyl
· 6,960 kW
16V H32/40
16 cyl
· 9,280 kW
16V H32/40V
16 cyl
· 9,280 kW
🔧 Komponenten & Aufbau
Component data being added…
📊 Technische Daten
Compression ratio
17:1
Max combustion pressure
200 bar
Stroke/Bore ratio
1.65 (280/170)
SLOC (Specific Lube Oil Consumption)
0.6 g/kWh ±25%
Turbocharged
Yes, enhanced Miller timing with high pressure ratio
Engine cycle
4-stroke
Engine block
Monoblock cast iron
Dry weight per cylinder
Approximately 1.5-1.7 tons (varies by config)
IMO compliance
IMO Tier II (NOx regulations)
Installation
Complete genset with generator on common base frame
unified from engine model
True
bore mm v
170
stroke mm v
280
rpm v
900-1000
fuel v
Diesel (MDO/MGO), Heavy Fuel Oil (HFO) up to 700 cSt @ 50°C (Uni-Fuel concept)
status v
Production (Specialized genset engine series)
datasheet url
https://www.maritimeinformed.com/datasheets/hyundai-heavy-industries-5h17-28m-prime-mover/co-1623926422-ga/h1728-project-guide-for-marine-dec-2022.pdf
